The High Pulse Capacitors (HPC) Cell is a special high-current discharge energy storage device that can operate in a temperature range of -40ºC to 85ºC pulse discharge.
The design is composed of a long-life Lithium (Li-SOCl2) battery and high pulse capacitor in parallel, together with a unique safety valve and sealing, a safe and reliable power system is achieved.
This power system is the ideal for long-term standby and high-current pulse applications.
Key Features:
High and stable voltage 3.6V
High pulse current capability
No passivation effects
Wide operating temperature range (-40 to +85ºC)
Long storage life and very low self-discharge (less than 2% per year)
End of life indication capability
High safety and reliability
Excellent performance at low / high temperature
Safe design (anti-explosion valve device)
Main applications:
GPS tracking devices / GSM modems
Utility meters (AMR)
Emergency & medical devices
Asset, container & cargo tracking
Communication equipment
RFID transponders
Data loggers
Sonar Buoys
HPC High Pulse Capacitor
| Model | Capacity (mAh) (3.67V) | Capacity (mAh) (3.9V) | Max. Charge Voltage (V) | Max. Charge Current (mA) | Max. Cont. Discharge Current (mA) | Max. Pulse Discharge Current (mA) | End Voltage (V) | Cell Impedance (m Ohm) | Dimension (D x H mm) | Average Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| HPC1520 | 40 | 70 | 4.1 | 25 | 500 | 2000 | 2.5 | ≦250 | 15 x 20 | 9 |
| HPC1530 | 80 | 140 | 4.1 | 50 | 750 | 3000 | 2.5 | ≦120 | 15 x 27 | 10 |
| HPC1550 | 230 | 355 | 4.1 | 100 | 2000 | 5000 | 2.5 | ≦100 | 15 x 50 | 20 |
ER Battery + HPC High Pulse Capacitor
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Max. Cont. Discharge Current (mA) | Max. Pulse Discharge Current (mA) | Size |
|---|---|---|---|---|---|
| ER14505+HPC1520 | 3.6 | 2500 | 500 | 2000 | AA+2/5AA |
| ER18505+HPC1520 | 3.6 | 4000 | 500 | 2000 | A+2/5AA |
| ER26500+HPC1520 | 3.6 | 8500 | 500 | 2000 | C+2/5AA |
| ER34615+HPC1520 | 3.6 | 19000 | 500 | 2000 | D+2/5AA |
| ER14505+HPC1530 | 3.6 | 2500 | 750 | 3000 | AA+2/3AA |
| ER26500+HPC1530 | 3.6 | 8500 | 750 | 3000 | C+2/3AA |
| ER34615+HPC1530 | 3.6 | 19000 | 750 | 3000 | D+2/3AA |
| ER14505+HPC1550 | 3.6 | 2500 | 2000 | 5000 | AA+AA |
| ER26500+HPC1550 | 3.6 | 8500 | 2000 | 5000 | C+AA |

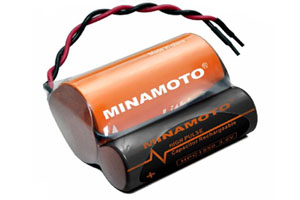

| ER34615+HPC1550 | 3.6 | 19000 | 2000 | 5000 | D+AA |
